Ultraflex T67 Steering Helm with Bezel up to 55HP

Ultraflex Steering Helm for engines up to 55HP with the exception of the Envirude E-TEC 50 for which the use of a t85 or T71FC is recommended


For use with outboard engines up to 40kw (55hp)

Features & Technical Specifications

All stainless steel output end of cable
Maximum allowable steering wheel diameter: 380mm (15") Minimum steering cable bend radius: 200mm (7.9")
Exceeds EN 29775 safety standards

Corrosion resistant materials.

Standard friction externally adjustable.
90° bezel
Four optional helm positions to facilitate steering cable installation Lock-to-Lock steering wheel turns: approx. 2.5
Stroke: 230mm (9")

Unsure what to order gives us a call on 01621 786413 we are here to help

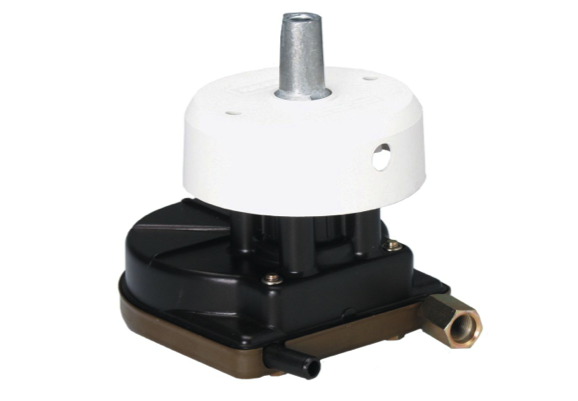

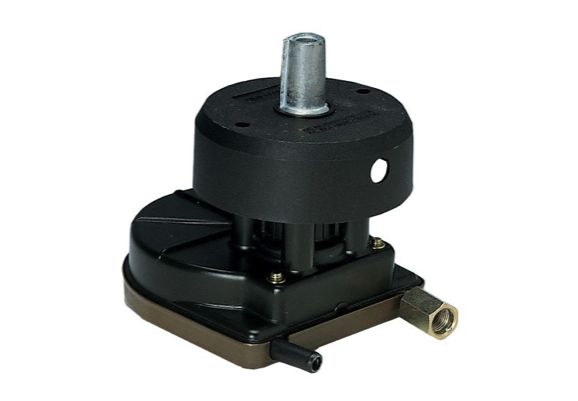

  • T67 Steering Helm 55HP with Black Bezel
  • T67 steering Helm 55HP with White Bezel

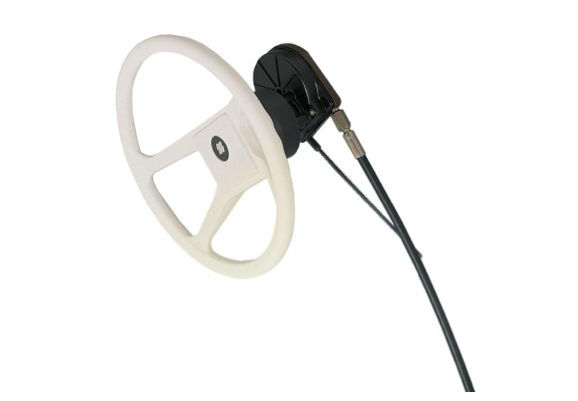

PS Wheel & Cable shown are for illustration purposes only and do not come with the helm unit
