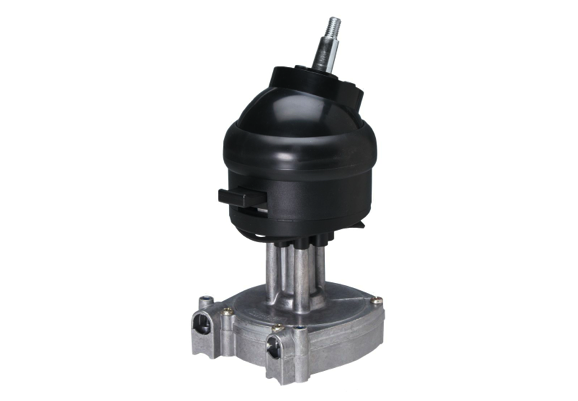

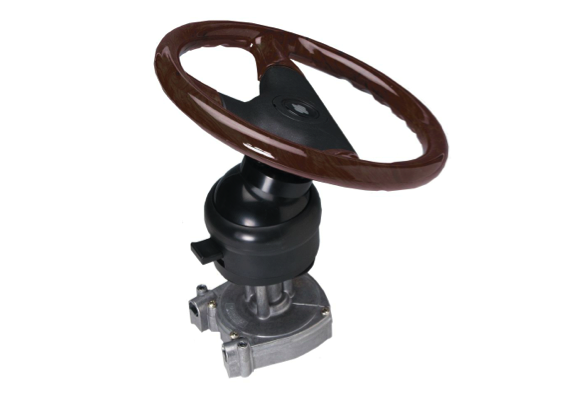

Ultraflex T81FC, T82FC, T83NRFC, T85NRFC Steering Systems - Add 4-X52 to give Full Tilt

Ultraflex Steering system allows a tilt of up to 48 degrees. Two model ranges and two cable styles giving full flexibility on fitting and position.

Features & Technical Specifications

  • All stainless steel output end of cable as per ABYC safety standards. Corrosion resistant materials.
  • Max. allowable steering wheel diameter: 406mm (16")
  • Min. steering cable bend radius: 200mm (7.9")
  • Max. operating load at tiller end: 3300N (340kg; 750lbs) Stroke: 228mm (9")
  •  Exceeds ABYC & EN 28848 safety standards

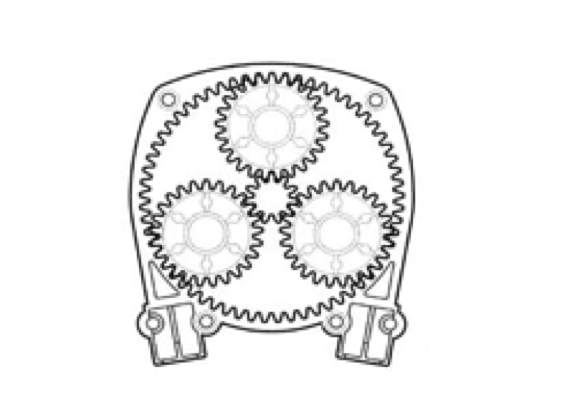

  • Featuring Planetary Gear Design
  • Fast connect system
  • Fast simple installation

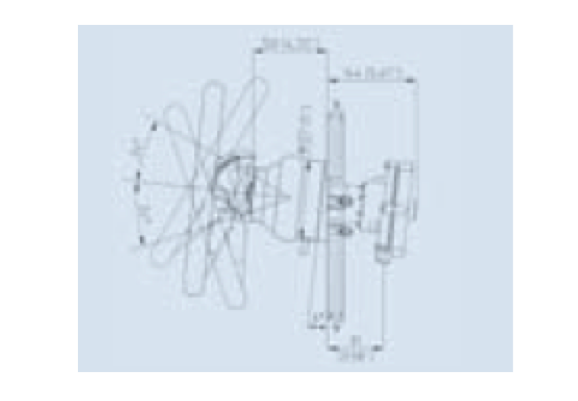

  • Tilt device eliminates underdash movement
  • Lock-to-lock steering wheel turns: approx. 3.8
  • Should not be used on boats equipped with engines that exceed the
  • Maximum horsepower rating of the boat
  • For boats faster than 50mph the twin cable steering systems are recommended
  • Max dash depth 25.4mm (1")
  • Models T83 & T84 incorporate the patented non reversible mechanism
  • The non-reversible steering helm eliminates the continuous load on the operator caused by the propeller torque making steering easy and safe.
  • M66 cable is required see Website for sizes
  • Add X52 to give full 28 degree and five locking positions
Unsure what to order please call 01621 786413 we are here to help

    • T81FC Steering Helm Single Cable
    • T82FC Steering Helm Double Cable
    • T83NRFC Steering Non Reversible Single Cable
    • T84NRFC Steering Non Reversible Double Cable
    • X52 Tilt range of 48° & five locking positions
