Vesper Cortex H1P Wireless Handset With Charging Cradle for V1/M1

£620.00 £689.99

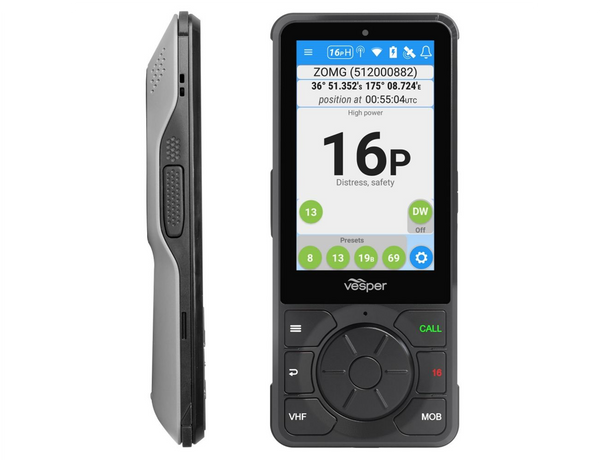

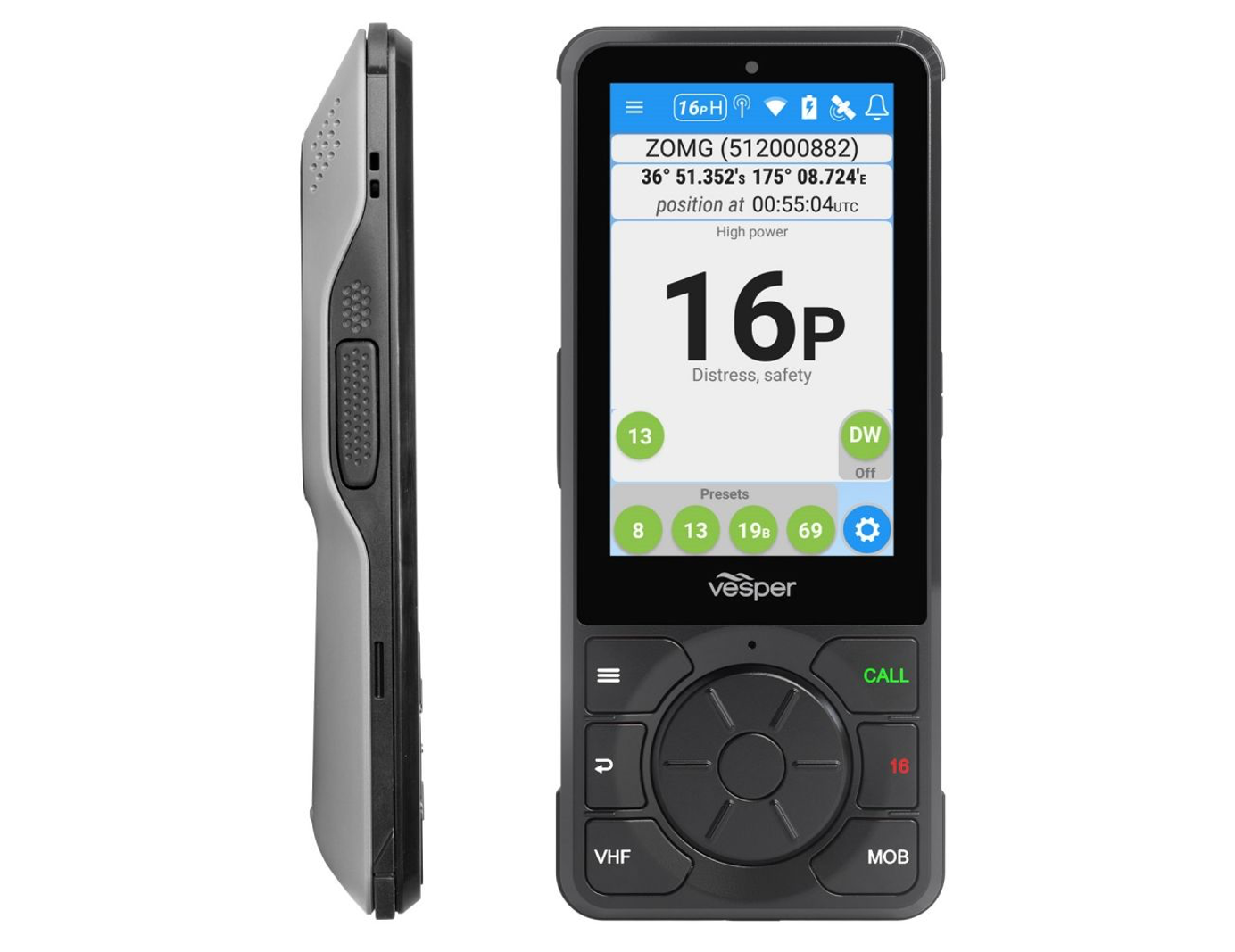

The Cortex H1P Portable Handset is the voice and calling interface for VHF, DSC calls and to view AIS targets. The handset's touchscreen display is the primary interface together with dedicated buttons and the Click-Wheel for swift navigation, ease of operation and single-handed use.

The touchscreen is purpose-built for the harsh marine environment and is designed and manufactured for use in wet conditions and with gloves.

The handset provides a screen to set up and manage the Cortex M1 hub, view AIS target data and vessel instrumentation, manage and monitor alarms and configure the remote vessel monitoring.

Upgrade the Cortex M1 SOTDMA smartAIS or add additional handsets for access to key functions in more places on board. Have situational awareness and VHF communication at the users fingertips, no matter where they are on the boat.

Includes an H1P Charging Cradle and non-powered H1 cradle.

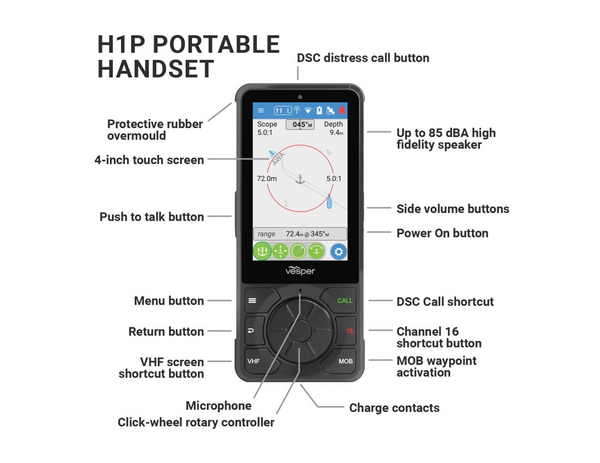

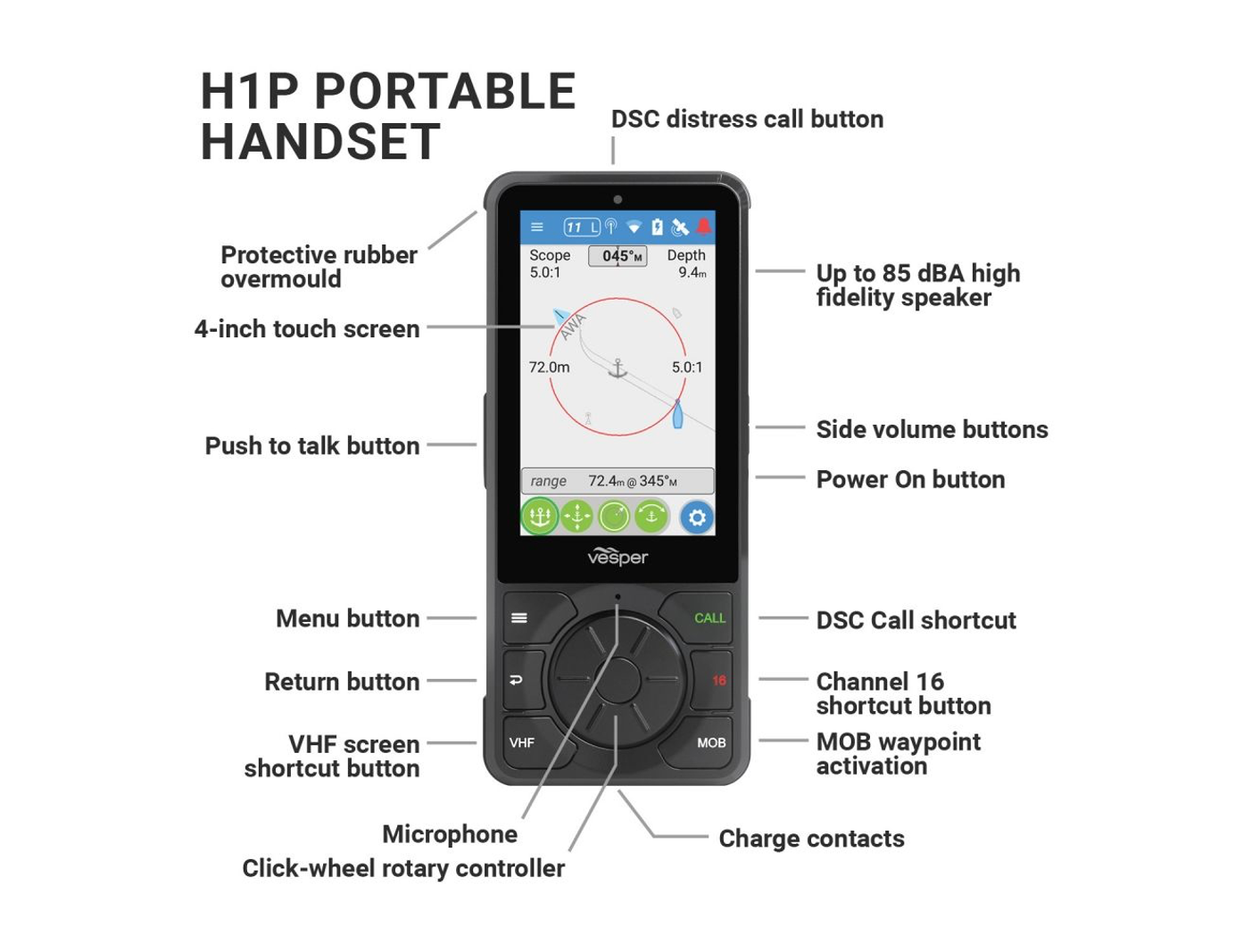

Key Features

Rechargeable, portable battery powered handset for connection to Cortex M1
4-inch multi-touch display with gorilla glass for maximum durability
Single hand operation with unique click wheel and dedicated buttons
Wet and gloves capable touchscreen
Optically bonded display for wide-angle and sunlight viewability, even in the harshest midday sun.
85 dBA of crystal-clear audio
Combined AIS and VHF display with voiced alerts
Touch a vessel onscreen for direct calling (DSC)
Add upto 10 handsets to Cortex M1
12V or 24V DC

Specification

General
Dimensions	164.8 x 71.8 x 21.4 mm
Weight	235g
Water Rating	IPX8
Battery Type	Lithium Polymer, 10 Hours Operation Full Re-charge in 2 hours
Operating Voltage	12-24V Compatible
Current Draw	Max:1A
Operating Temperature	-25°C - 55°C

Sensors
Ambient Light Sensor	✓

Audio
Amplifier	3 W Class D, THD <5% @ 85dBA
Built-in Microphone	✓

Display
Screen	LCD TFT Si, 640 x 800, 24-bit Colour
Touch	Capacitive, optically-bonded to LCD
Touch Feature	Glove and salt water operable
Cable Length	2m
Channel 16 Shortcut	✓

Instrument Features
Backlight	600 cd/m²
