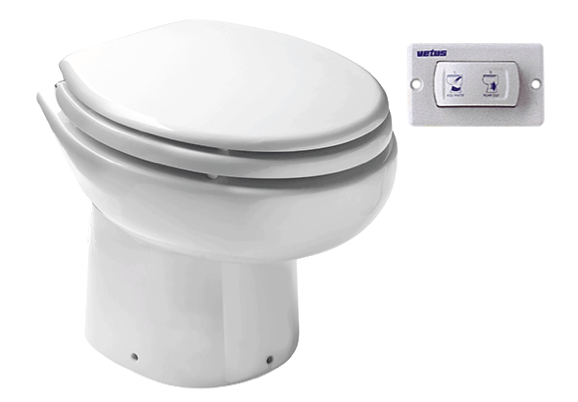

Vetus Electric Toilet WCP 12V Manual Switch
£695.00
£769.00
VETUS toilet type WCP is the smallest electric toilet on the market. Owing to its small dimensions and low weight, it may be the ideal replacement for older hand-operated pump toilets.This version features a simple rocker switch control, resulting a in a greatly reduced price.All VETUS toilets are equipped with an electric pump, which will macerate the contents and evacuate it in about 7 seconds. VETUS toilets are both quick and quiet in operation (61dB(A)). Key Features
- A stylish and ergonomic porcelain bowl with an easy clean seat and lid of similar dimensions to a normal domestic toilet.
- A combined pump / macerator unit with a diameter of 96 mm.
- 300 Watts - capacity of 36 l/min at 3 metres head
- We recommend that the flush water be drawn from the main pressurized fresh water system. Alternatively, a separate pump and fine filter can be installed to draw seawater from outside the boat.
- The waste water holding tank may be positioned up to 3 metres above the toilet discharge connection. The maximum length of ø 19 mm discharge hose can be up to 30 metres. li>Both discharge pump types are easily accessible for occasional cleaning if required. The pump with the separate macerator is provided with a grille to prevent coarse matter reaching the pump.
- All toilets are provided with a water lock and non-return valve in the discharge line.
Techy Bits
- Control Type : Tumbler Switch
- Voltage : 12 or 24v
- Current consumption : 12v 25A, 24V 12.5A
- Material : Porcelain
- Water supply : 3/4 BSP
- Water Supply : Connect to water pressure 1,7 - 6 bar
- Drain Diameter : 19mm
- Max Delivery Height : 3 metres
- Maximum drain length : 30 metres
- Pump Out : 36 litres per min
- Panel Dimensions : 75 x 45mm
- Panel build in depth : 40mm
- Build in panel protection : IP65
- Control Options : Fill , Flush
