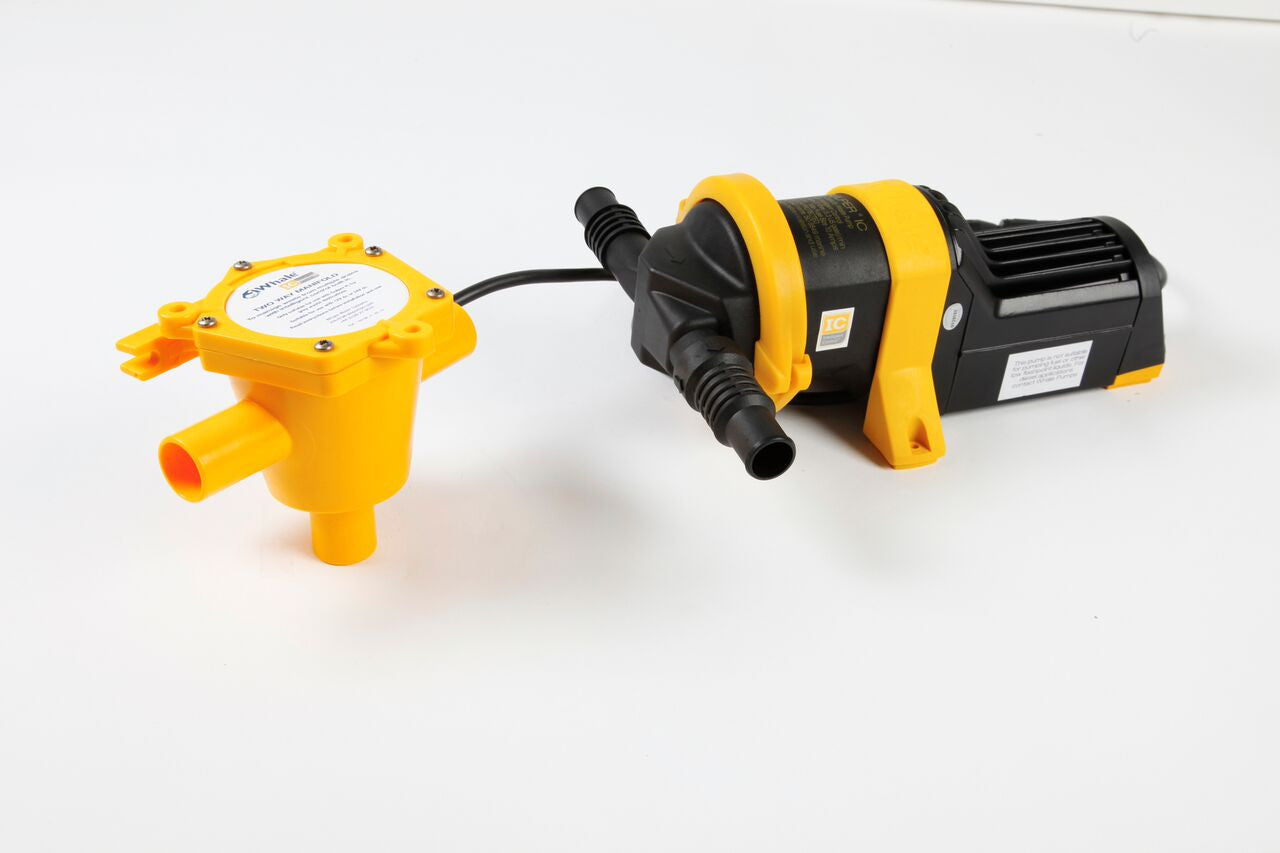

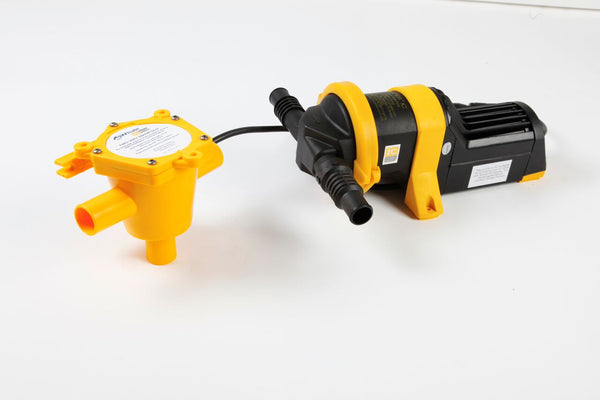

Whale Grey IC Automatic Grey Waste System - 12 or 24v

• Ideal for installation where you don’t have space for a grey waste tank.

• Easy installation - pre wired plug and play kit

• Reliability - No moving parts to clog

• Gulper IC - Automatic control

• One pump handles waste from multiple drains

• Fast drainage - high capacity up to 19 ltrs (5 US gals) /min

• Long life - Self primes and can run dry

• Soft start - protects the pump

• Easy to install - including uneven surfaces

• Optimal drainage - Built in time delay

Techy Bits

• Voltage : 12V or 24V
• Voltage Range : 12V 10 to 13.6 V d.c, 24V 21.6 V d.c. to 27.2 V d.c.
• Current profile : Soft stop/ start
• Recommended fuse Automotive : 12V 10 Amp, 24 V 5 Amp
• Minimum Wire Size : 1.5mm ( 16 AWG )
• Weight : 1.6 kg ( 3.5 lbs )
• Maximum Suction Lift : 3m ( 10 ft )
• Maximum Discharge : 3m ( 10 ft )
• Maximum Discharge head and Suction life combined : 4m ( 13 ft )
• Hose connections: Barbed 3/4 " ( 19mm) / 1" ( 25mm )
• Flow Rate : 12V 19 litres per min, 24V 17.5 litres per min

• Grey IC 12V
• Grey IC 24V
