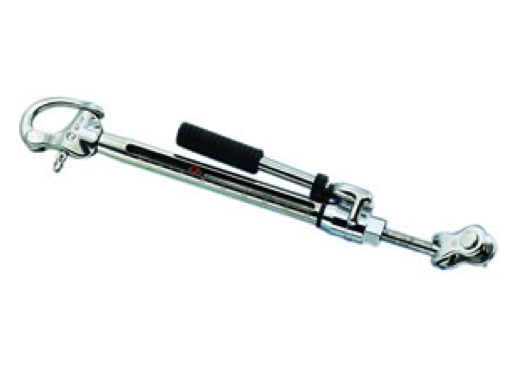

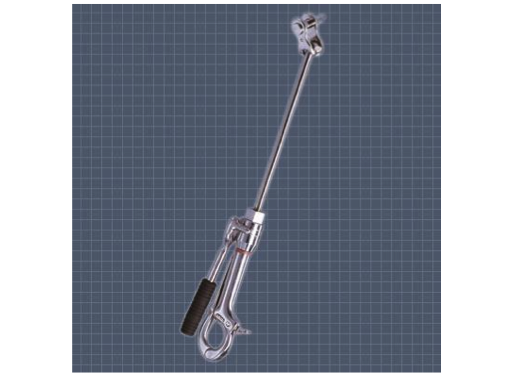

Wichard 5566 Babystay Adjuster with Handle - 12mm Pin Dia

Wichard handle babystay adjusters feature thread that is designed to be low maintenance and provide easy adjustment under high loads, a pelican hook for fast one handed fitting, and a calibrated scale for reproducible results
Key Features
  • Ideal for fitting a removable  inner forestay (genoa or solent)
  • Easy to install thanks to the snap shackle
  • Robust and performant
  • Strongly recommended when there is a furling system
  • The handle model offers great comfort during operations
  • Installation of a babystay adjuster to set up a solent, genoa ….
  • Improve the overall performance of the boat (especially those equipped with a reefing-furling system)

Techy Bits, Dimensions & Weights

  • Length pin to pin closed / open: 370 / 540 mm
  • Toggle length x width: 15 x 20 mm
  • Pin diameter: 12 mm
  • Stud diameter: 12 mm
  • For wire diameter: 5 / 6 / 7 mm
  • Grade 316L stainless steel
  • HR stainless steel snap shackle (17.4 PH)
  • Working Load: 2800 Kg
  • Breaking Load: 5100 Kg
  • Weight: 1268 gram
