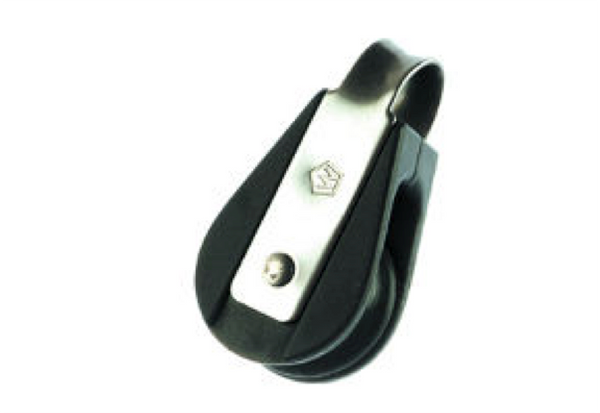

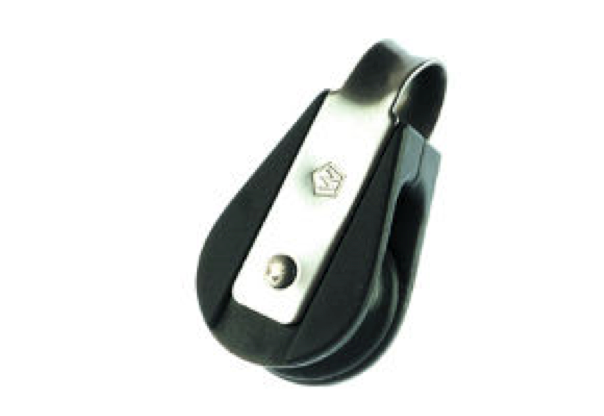

Wichard 18mm Single Block Fixed Eye - Plain or Ball Bearing Block

A large range of small Blocks for dinghies and catamaran use. They have a wide choice of fastenings and a load bearing stainless steel shaft.

Plain Bearing Block

Key Features

• Complete range of plain bearing blocks
• Modern design > Withstand high loads
• Ideal for static operations
• The sheave runs on the stainless steel bush
• Light cheeks protecting the sheave
• Wide choice of fastenings thanks to the universal head
• The sheave can be removed for maintenance

Applications

• For dinghies and catamarans applications: genoa sheets, boom vang, footmast block, masthead block…
• For larger yachts: barber-hauler, cunnigham, various, control lines…

Material

• Grade 316L stainless steel head configuration
• Grade 316L stainless steel load straps
• Polycarbonate flanges
• Composite saddle for cam models
• Composite sheave

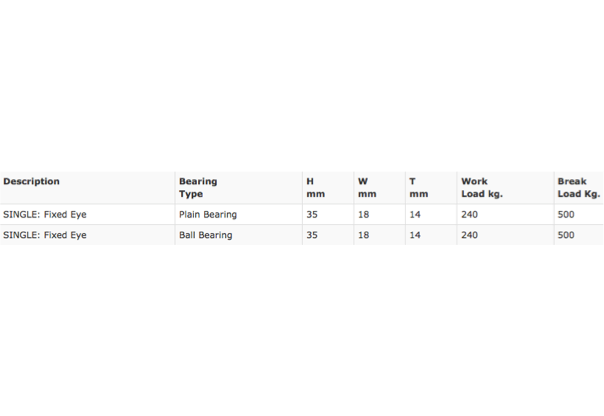

Dimensions & Weights

• See attached image

Models

• Wichard 18mm Single Block Fixed Eye Plain Bearing
• Wichard 18mm Single Block Fixed Eye Ball Bearing
