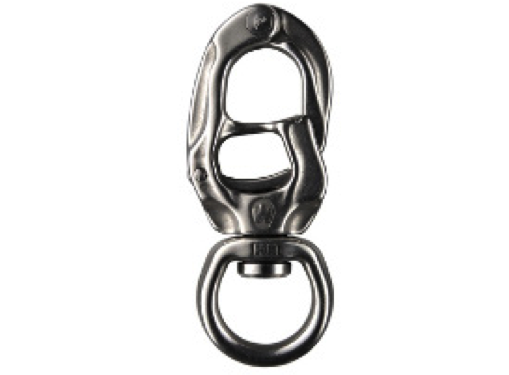

Wichard Speedlink Trigger Snap Shackle Universal Eye - All Sizes

New from Wichard this modern design Snap shackle ticks all the boxes

Speedlink is the new trigger snap shackle dedicated to spinnaker operations on racing boats and offering an excellent weight / performance ratio.

Speedlink was developed using finite element analysis software and has an optimised design. Its shape, cut-outs and ribs make it extremely light and give it one of the best strength/ weight ratios on the market.
Speedlink's ultra-technical lines make it one of the most modern and efficient snap shackles available.
• The special load-bearing surface of the swivel eye avoids excessive rope wear.
• Its overall design prevents adjacent lines from jamming.
• Easy opening: opening under load, by using the release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
• Secure locking: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact, while the distribution of stresses limits the effort needed to open it under load.
Speedlink is forged in HR stainless steel and can bear exceptional working and breaking loads for a minimum weight.

Key Features

  • Ultra lightweight: developed by using finite element analysis software, Speedlink has an optimised design thanks to its shape, cut-outs and ribs. Its make it extremely design and gives its one of the best strength/weight ratios on the market.
  • Easy opening: opening under load, whether manually or using release fid, is easy and effortless thanks to the generous passage diameter and its optimised slopes.
  • No accidental opening: the special shape of the latch reduces inertia and avoids unintentional opening, especially under impact.
  • Sturdy: Speedlink is forged in HR stainless steel and can bear outstanding working and breaking loads for a minimum weight.
  • Modern design: its ultra-technical lines avoid excessive rope wear and prevent adjacent lines from jamming.
  • Spinnaker operations: sheets, halyards, peelingCan handle two sheets or one sheet and one trigger snap shackle
  • HR stainless steel 17.4 PH
  • Release fid (part #: 10302) see website

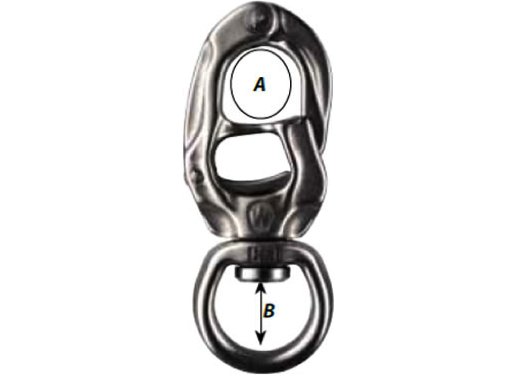

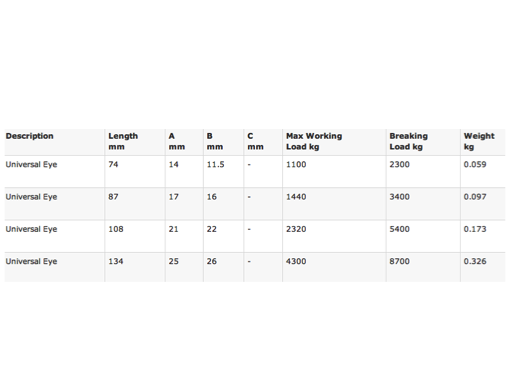

Techy Bits, Dimensions & Break Loads

  • See attached images

Sizes

  • Speedlink Trigger Snap Shackle Universal Eye 74mm
  • Speedlink Trigger Snap Shackle Universal Eye 87mm
  • Speedlink Trigger Snap Shackle Universal Eye 108mm
  • Speedlink Trigger Snap Shackle Universal Eye 134mm
