Wichard Stainless Steel Captive Twisted Shackle - All Sizes

Dropped Forged Captive Pin Twisted Shackles

Captive pin shackles 'patented'

Not only are these self-locking, the pin is also connected to the body at all times, even when fully opened. Consequently, there is no more risk of seeing it fall in the water, which would make the shackle unusable. These shackles can therefore be fitted completely safety using just one hand.

Key Features
  • Captive pin twisted shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loose due to vibrations
  • Outstanding working and breaking loads
  • le manillon ne peut se perdre
  • Single handed operation for more safety
  • Perfect for application where a 90° angle twist setup is required
  • Often used to attach an unarticulated part (block on a rail) or on purchases
  • Grade 316L stainless steel

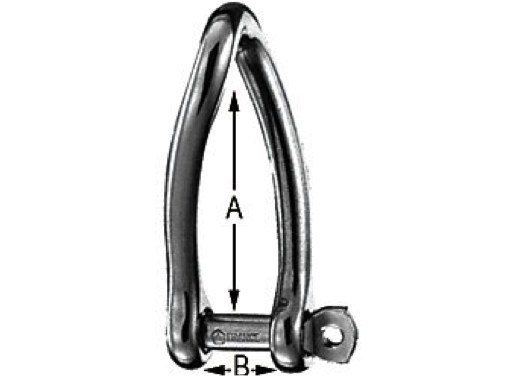

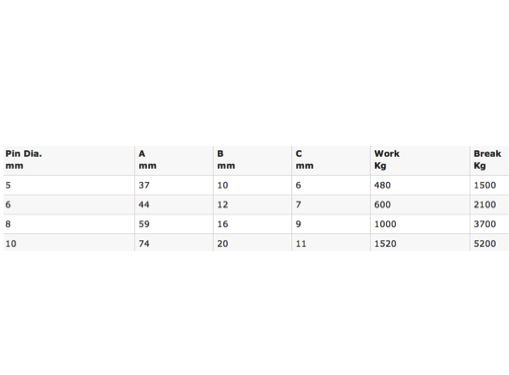

Dimensions & Break Loads
  • See attached images
  • Twisted Shackle Captive Pin 5mm
  • Twisted Shackle Captive Pin 6mm
  • Twisted Shackle Captive Pin 8mm
  • Twisted Shackle Captive Pin 10mm
