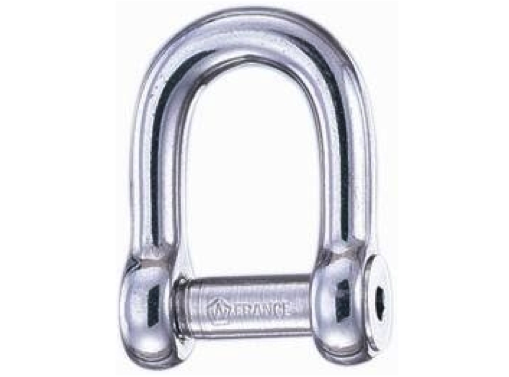

Wichard Stainless Steel Self-Locking D Shackle Allen Head Pin - All Sizes

Dropped Forged Allen Head Pin Dee Shackles

The head of the pin does not stick out from the shackle's body, thus eliminating any risk of snagging.

Key Features

• Self-locking shackle with allen head pin D forged in grade 316L stainless steel
• The pin is locked into one of the indentations
• The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging
• No risks of loose due to vibrations
• Outstanding working and breaking loads
• Ideal to link chain and anchor
• On the halyard, avoids to damage the sails
• To be used when the clutter is reduced
• Grade 316L stainless steel

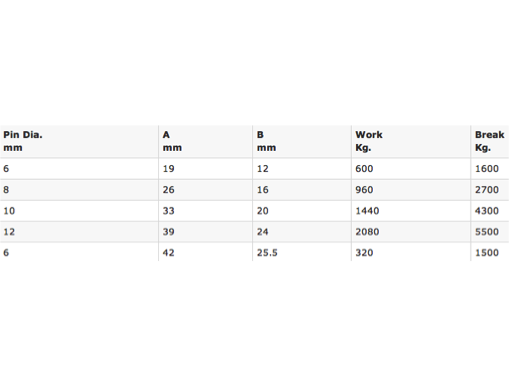

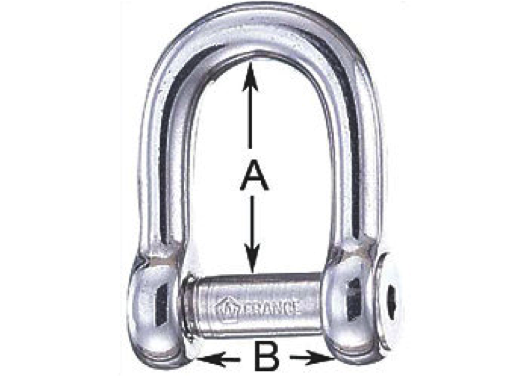

Dimensions & Break Loads

• See attached images

Sizes

• Self Locking D Shackle Allen Pin 6mm
• Self Locking D Shackle Allen Pin 8mm
• Self Locking D Shackle Allen Pin 10mm
• Self Locking D Shackle Allen Pin 12mm
• Self Locking D Shackle Allen Pin 6mm ( designed for batten cars )
