Tecma Toilet 2 Switch Control Panel (12V / 24V)

£270.00 £297.00

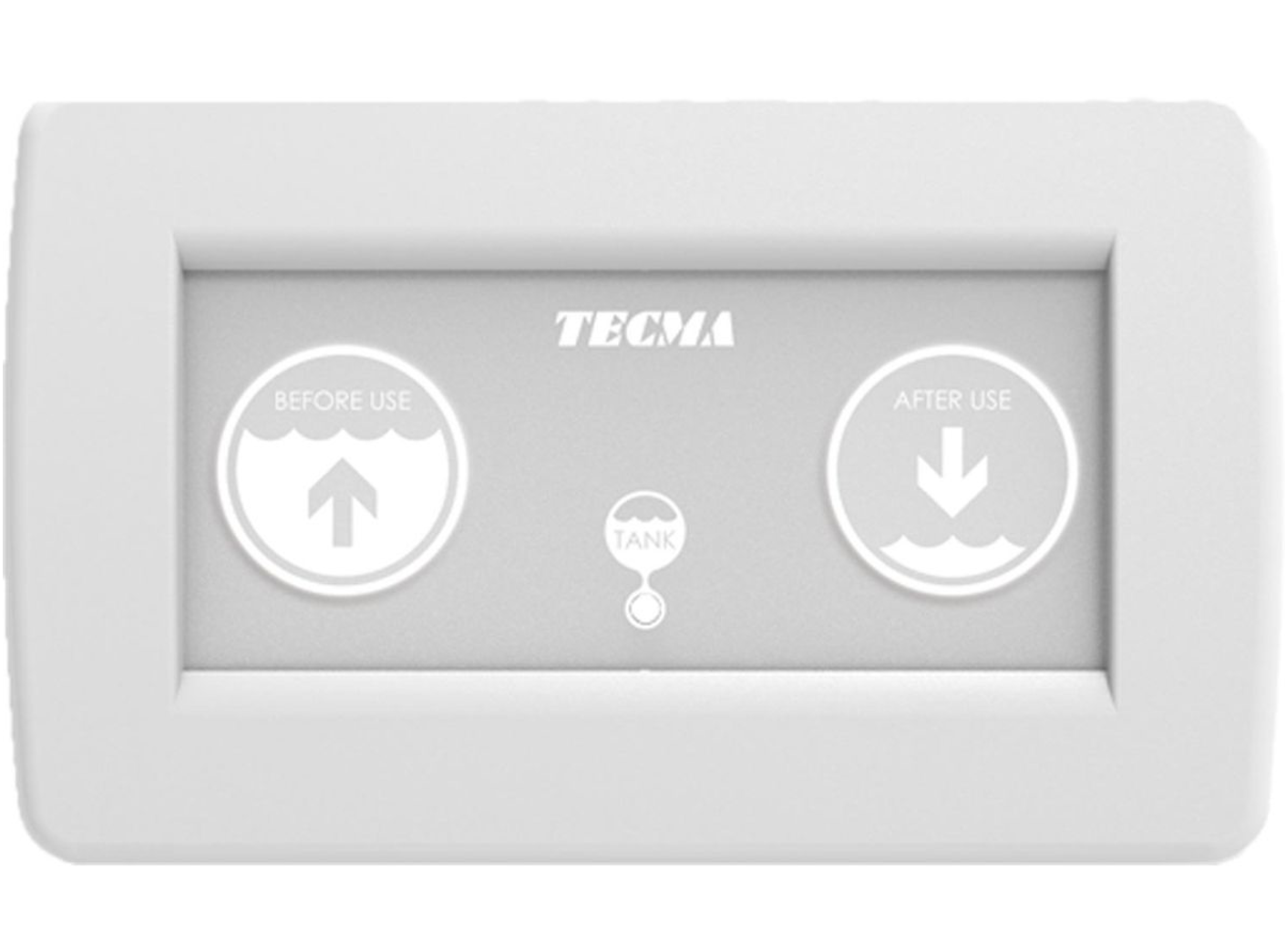

Thetford Marine Tecma All-in-one SFT 2P control panel T-PF.P11 with tank monitoring led and water amount trim.

The All-in-one control panel has a controller directly integrated in the wall interface with the common double function before/after use. Flush is activated by two buttons "Before use" and "After Use". Toilet remains empty for navigation. Tank level monitoring led and water amount trim.

Tecma All-in-one SFT 2P control panel is suitable for use with Tecma X-Light, X-Light Short, Privilege, Evolution, Breeze, E-Breeze, Silence Plus 2G, Silence Plus 2G Short, Elegance 2G, Elegance 2G Short, Elegance 2G Cut, Elegance 2G Cut Short, Nano, Compass and Compass Short toilets.

Note: Compatible with Tecma pneumatic and Mirus field effect sensor or with commercial sensor.

Specification

Brand	Tecma
Application	Tecma X-Light, X-Light Short, Privilege, Evolution, Breeze, E-Breeze, Silence Plus 2G, Silence Plus 2G Short, Elegance 2G, Elegance 2G Short, Elegance 2G Cut, Elegance 2G Cut Short, Nano, Compass, Compass Short
Voltage Description	12V / 24V DC
Cut Out	110mm x 76mm (4.3" x 3")
Height Description	91.6mm (3.6")
Width	145mm (5.7")
Depth	Above Surface: 9mm (0.4"), Behind Surface: 56mm (2.2")
