TRIRON MPPT Solar Charge Controller 10 / 20 / 30 / 40 Amps

£63.00 £72.00

MPPT Charge Controller.

Lead Acid and Lithium Battery Compatible.
Dual USB Charging Ports.
Remote monitoring and control options using MT50 display, PC and Mobile Phone.

TRIRON MPPT N Series controller with ultra-fast tracking speed and high tracking efficiency greater than 99.5%.

TRIRON N Series improve energy utilisation by 10% – 30% compared to PWM charging method. Peak DC/DC conversion efficiency of 98%.

Compatible with Lead-Acid and Lithium Batteries. Temperature compensation for lead-acid batteries with optional sensor.

Load timer settings can be configured with Controller, Windows PC Software or Android App.

Dual USB ports for device charging (5V DC/2.2 Amp).

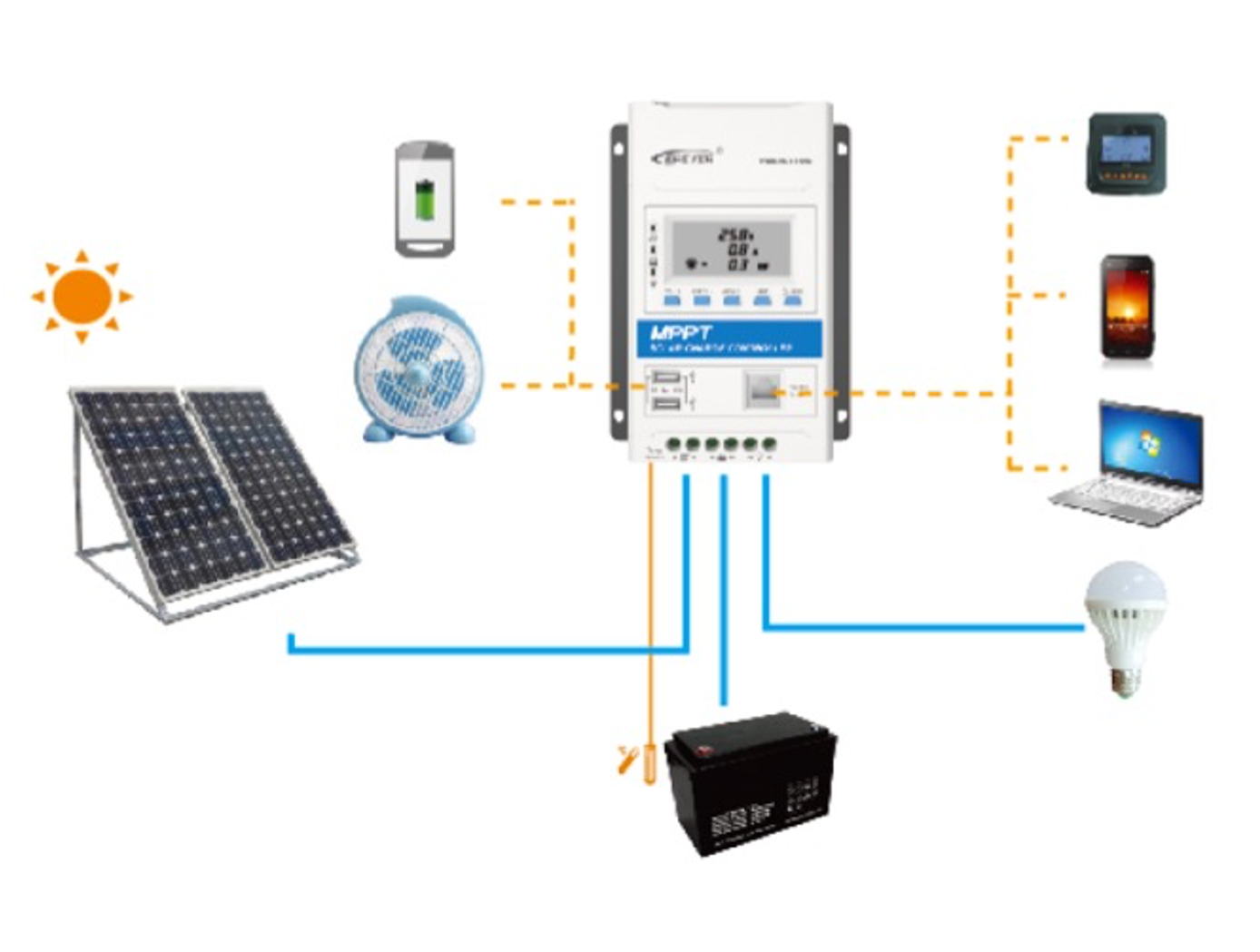

Wide operating temperature range -25°C ~ +55°C, suitable for Solar systems in Marine, RV, Home, Communication Base Stations, Street Lighting, and Field Monitoring equipment.

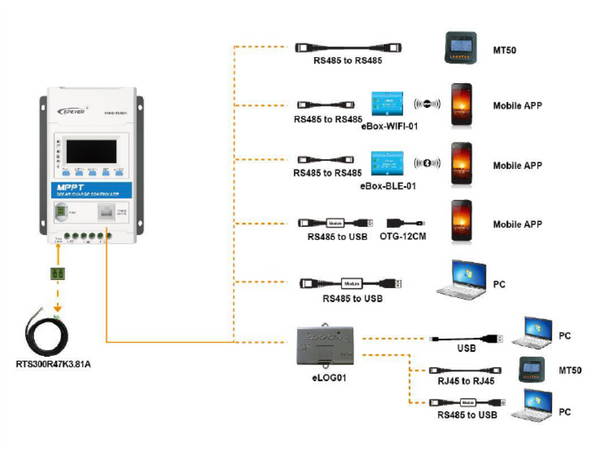

Control and Monitoring Options:

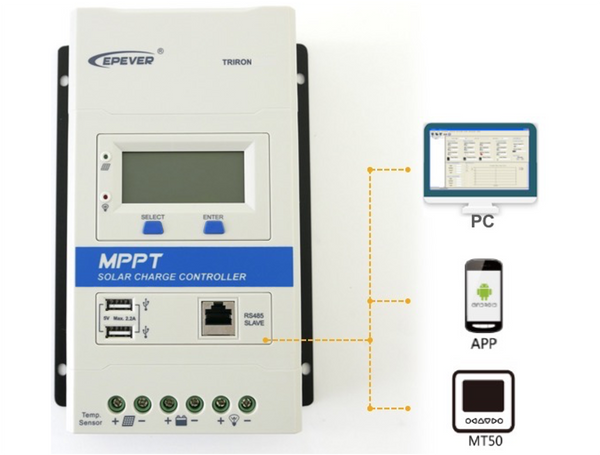

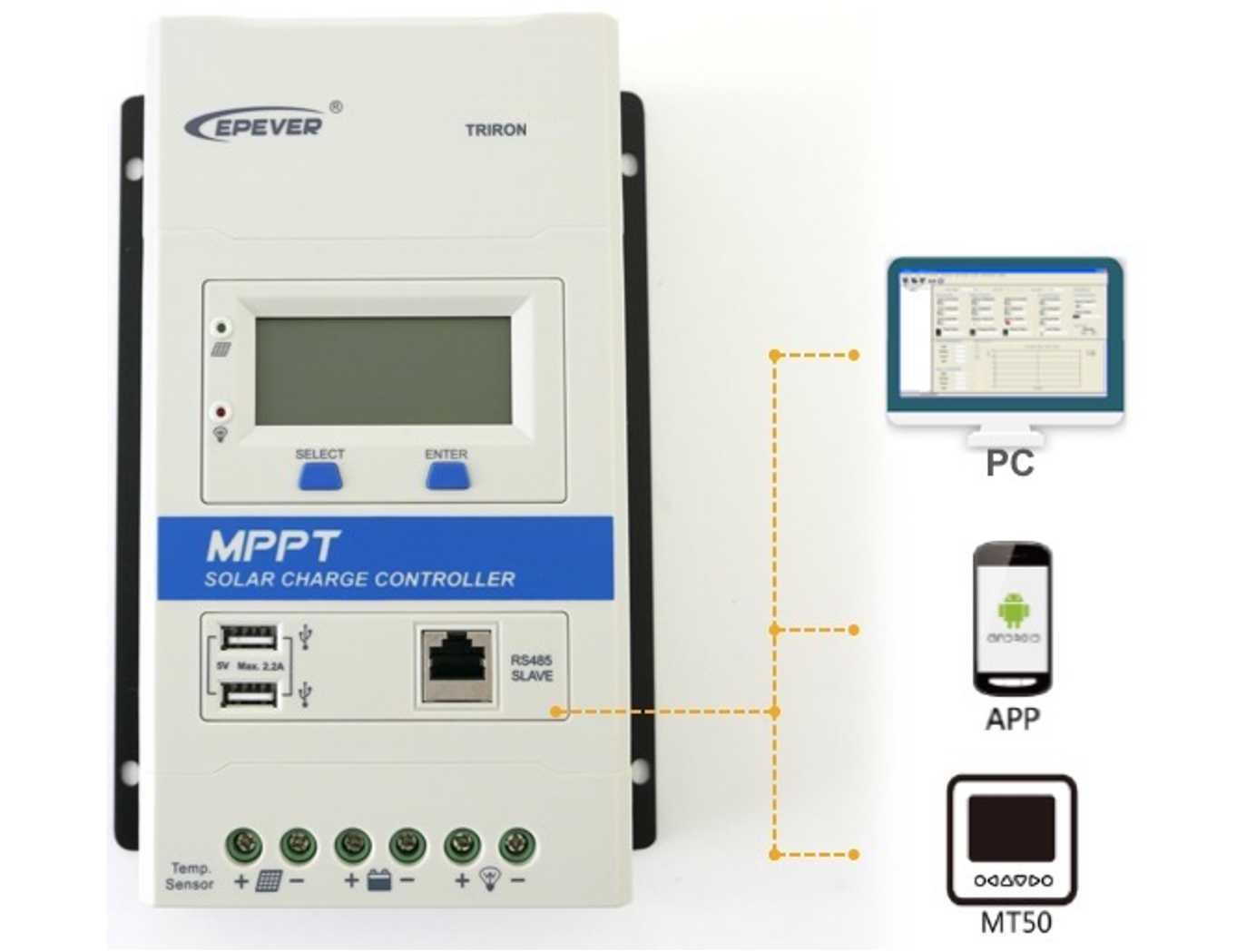

Inbuilt LCD Display. Adjust parameters, control and monitor controller using remote MT50, PC or Android App. Software download required.

Optional Communication Cable (USB to RS485) required for PC connection. OTG – USB Adapter required for Mobile Phone.

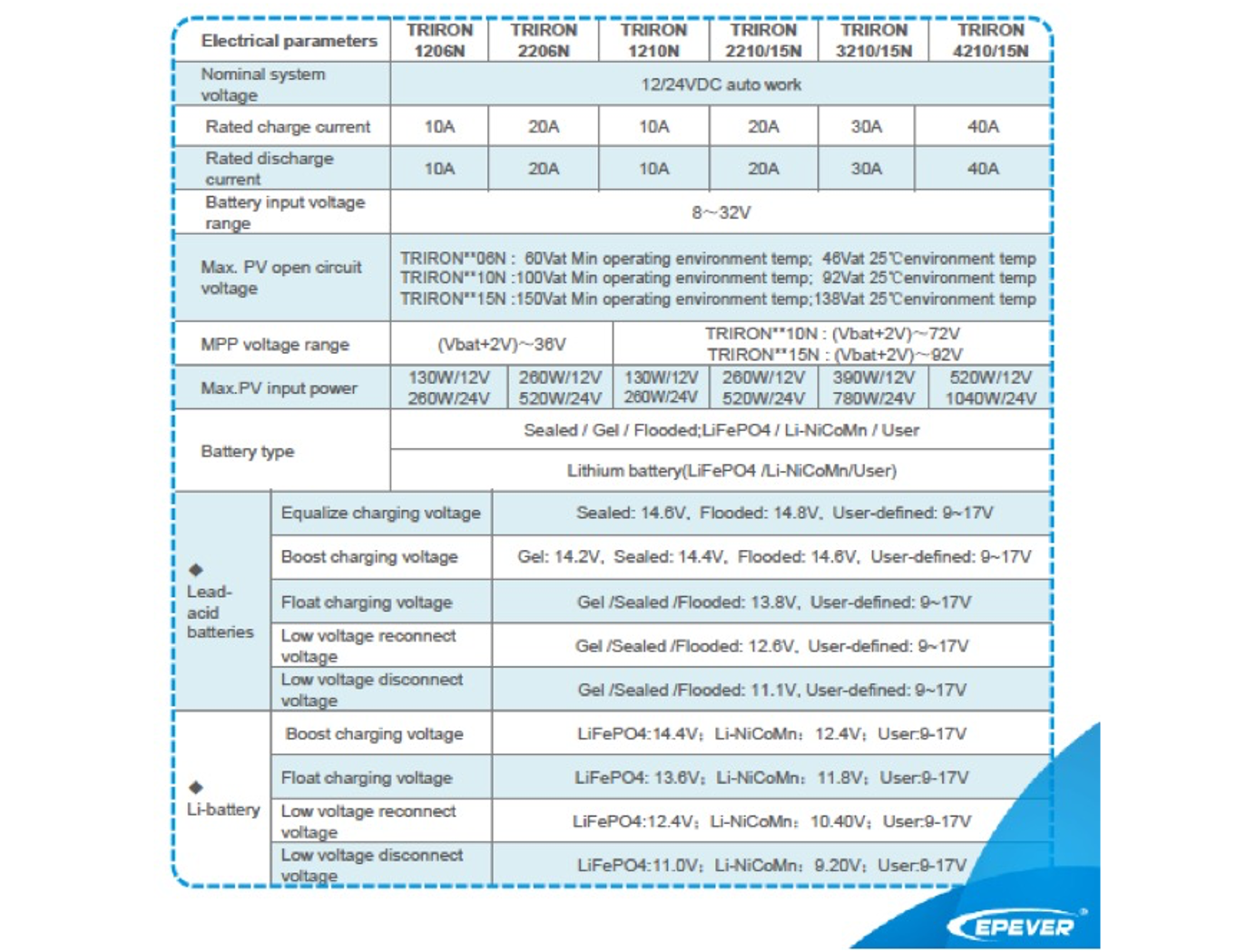

Electrical Specification:

Parameter	TRIRON 1206N (10 Amp)	TRIRON 2206N (20 Amp)	TRIRON 3210N (30 Amp)	TRIRON 4210N (40 Amp)
Nominal System Voltage	12 / 24 V DC Auto Detect
Rated Charge & Discharge Current	10A	20A	30A	40A
Battery Voltage Range	8V ~ 32V
Max. PV Open Circuit Voltage	60V (-25°C), 46V (+55°C)		100V (-25°C), 92V (+55°C)
MPP Voltage Range	(Battery voltage +2V) ~ 36V		(Battery voltage +2V) ~ 72V
Max. PV Input Power	390W (12V), 780W (24V)	780W (12V), 1560W (24V)	1170W (12V), 2340W (24V)	1560W (12V), 3120W (24V)
Battery Type	Lead Acid (Gel / Sealed / Flooded / User Set), Lithium (LiFePO4 / Li-NiCoMn / User Set)
Temperature Compensation Coefficient	-3mV/℃, 2V (Default), Lead Acid Only
Grounding	Common Negative
USB Interface	Dual Port, 5VDC / 2.2A (Total)
RS485 Interface	5VDC / 100mA
Self Consumption	≤14mA (12V)；≤15mA (24V)

Environment Specification:

Operating Temperature Range	-25°C ~ +55°C
Storage Temperature Range	-20℃ ~ +70℃
Relative Humidity	≤95%, N.C
Enclosure	IP30

Physical Characteristics:

Parameter	TRIRON 1206N (10 Amp)	TRIRON 2206N (20 Amp)	TRIRON 3210N (30 Amp)	TRIRON 4210N (40 Amp)
Dimension	135×180.8×47.3mm	150×216×56.7mm	158×238.3×62.7mm	183×256.8×66.7mm
Mounting Dimension	126×150mm	141×170mm	158×200mm	174×220mm
Terminal	12AWG(4mm )	6AWG(16mm )	6AWG(16mm )	6AWG(16mm )
Recommended Cable	12AWG(4mm )	10AWG(6mm )	8AWG(10mm )	6AWG(16mm )
Weight	0.56kg	0.92kg	1.35kg	2.06kg

Full Protection Functions:

PV Over Current, PV Short Circuit, Lithium Battery low temperature, Night Reverse charging, Battery & PV reverse polarity, Battery over discharge, Battery over heat, Battery over voltage, Load Short Circuit, Load Overload, and Controller overheating.

CE, RoHS.

Models

TRIRON MPPT Solar Charge Controller 10 Amps - Awaiting Stock
TRIRON MPPT Solar Charge Controller 20 Amps - In Stock
TRIRON MPPT Solar Charge Controller 30 Amps - Awaiting Stock
TRIRON MPPT Solar Charge Controller 40 Amps - in Stock
