EPEVER UPower Series MPPT Charge Controller & Inverter 1KVA / 2KVA

A Hybrid fully configurable Inverter Charger combining MPPT Solar Charging and Inverter function in one reliable solar off-grid package. Suitable for Industrial, Commercial, Scientific, Residential and Marine use.

Industrial grade design:

  • Uses multi-core processor design and an advanced MPPT control algorithm in an IP30 enclosure.
  • SPWM Pure Sine Wave output. Low Harmonic Distortion (≤3%) suitable for industrial, scientific and medical applications.
  • MPPT technology with efficiency up to 99.5%

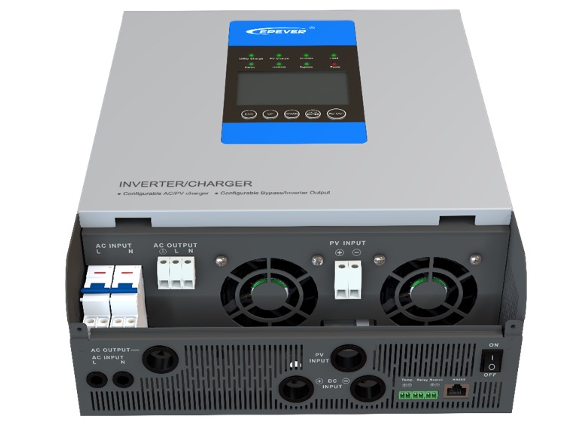

  • AC side / Utility side 2P circuit breakers inbuilt (reduces installation space and time)
  • Battery temperature compensation function
  • Extensive electronic protection
  • Can deliver instantaneous Output Surge Power twice the device rated power.
  • For Critical Power Applications, inbuilt Relay Interface can activate an external power source (e.g. Auto Start/Stop Generator) when Battery voltage is critically low. Useful for UPS systems.

MPPT Solar Charge algorithm maximises conversion efficiancy up to 99.5%. Battery Charging function configurable to suit local environment preferences and reliabilty requirements in multiple priority modes:

  • Solar charging priority over Utility (to balance low running cost with reliability)
  • Utility charging priority over Solar (to maximise charge in cloud conditions)
  • Solar only charging (to achieve lowest running cost)
  • Utility & Solar combined simultaneous charging

Inverter DC-AC module uses SPWM to produce Pure Sine wave output suitable for residential and commercial / scientific applications.

AC Inverter Module can be configured to run on:

  • Always Battery source. This creates a continously stable output for systems requiring UPS (Uninterrupted Power Supply), e.g. telecommuncation systems or medical devices, or for countries where electrical power is unstable.
  • Utility Power as default. Example when a Boat is connected to shore power.
  • Configure output Voltage between 230VAC and 220VAC, and frequency between 60Hz or 50Hz

Control and Monitoring : Large 4.2 inch inbuilt display with realtime opertional data. Control and Monitor the system with PC Software or Android App.

  • Optional Communication Cable (USB to RS485) required for PC connection.
  • Optional eBox-WiFi required for Mobile Phone.
  • Software download required.

Electrical Specification:

UPower Series 1 KVA 2 KVA 3 KVA
System Battery Voltage (and Range) 12 V DC (10.8~16VDC) 24 V DC (21.6~32VDC)
Output Power (15min.) 1000W (Continous 800W) 2000W (Continous 1600W) 3000W (Continous 2400W)
Max. Surge Power 2000W 4000W 6000W
Inverter Output Voltage / Frequency 220VAC±3%, 230VAC (-7%~+3%) / 50Hz/60Hz
Inverter Output Wave Pure Sine Wave
Distortion THD ≤3% (12V or 24V resistive load)
AC Utility Input Voltage 160VAC~280VAC(Working voltage range), 170VAC~270VAC(Utility starting voltage range)
Max. Utility Charge Current 20A 30A
Max. PV Open Circuit Voltage 46V 92V
Max. PV Input Power 390W 780W
Max. PV Charging Current 30A
Battery Type Lead Acid (AGM / Gel / Sealed / Flooded / User Custom)
Battery (Equalization/Boost/Float) Volatge 14.6V / 14.4 V / 13.8 V 29.2 V / 28.8 V / 27.6 V
Temperature Compensation Coefficient -3mV/℃, 2V (Default)
MPPT Tracking Efficiency upto 99.5%
PC Connectivity Option RS485 Interface
Inbuilt Relay Interface

Can drive resistive loads 125VAC /1A, 30VDC/1A



Environment Specification:

Operating Temperature Range -20°C ~ +50°C
Relative Humidity ≤95%, N.C
Enclosure IP30



Physical Specs:

Parameter UPOWER 1KVA UPOWER 2KVA UPOWER 3KVA
Dimension 386×300×126mm 444×300×126mm
Mounting Dimension 230mm
Mounting Hole Size Φ8mm
Weight 7.3kg 8.5kg 9.2kg



Full Protection Functions:

PV Over Current, PV Short Circuit, Night Reverse charging, Battery & PV reverse polarity, Battery over discharge, Battery over heat, Battery over voltage, Load Short Circuit, Load Overload, and Device overheating.

CE, RoHS.

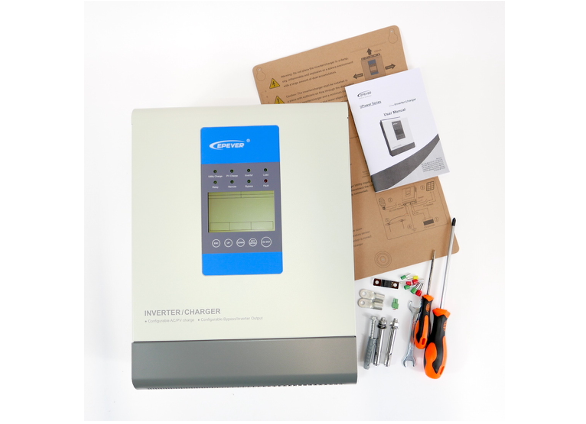

Whats in the Box

  • Hybrid Charger/Inverter
  • DC Circular & Input  Terminals
  • Battery Input Fuse
  • Environment Temperature Sensor
  • Installation tools & template, Wall Anchor Bolts and Screws

Models

  • EPEVER UPower Series MPPT Charge Controller & Inverter 1KVA
  • EPEVER UPower Series MPPT Charge Controller & Inverter 2KVA
